LUMOS LUM-Z Series
Overview

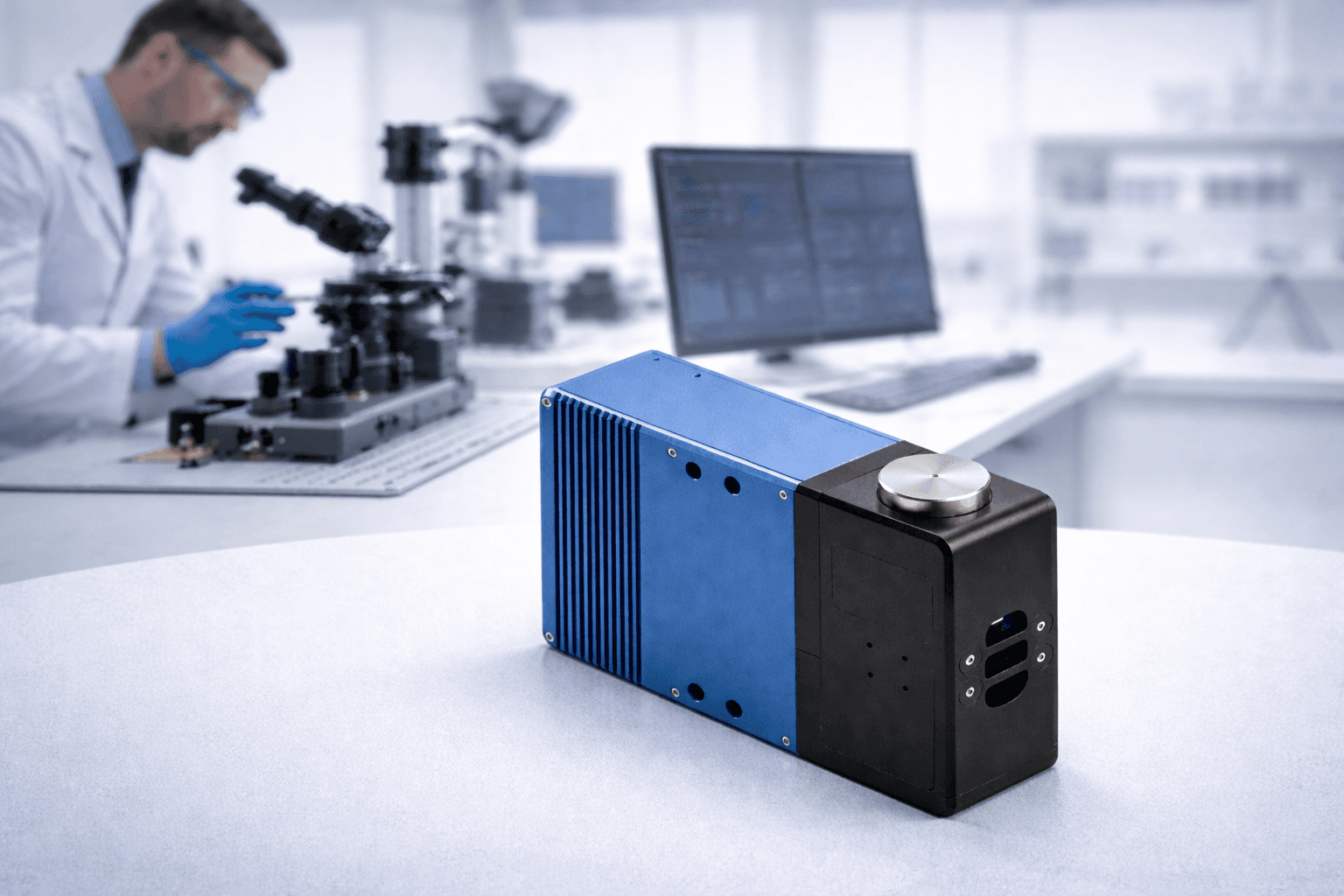

LUM-Z Series Overview
The LUM-Z Series is a 3D beam profiling platform for scanning and analyzing beam propagation, built for precision step control and selectable wavelength environments.

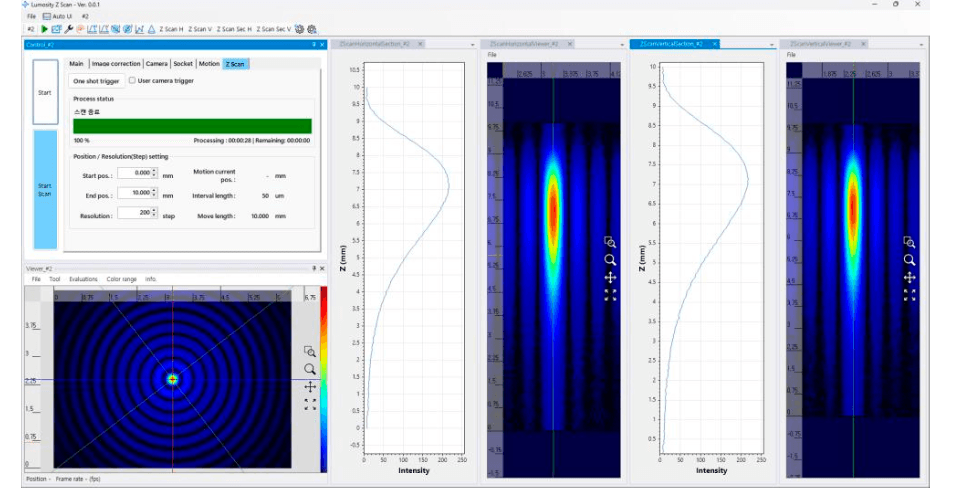

Measurement View
Scan Analysis Interface
Specification
Z Axis Scan Spec
| Spec | |
|---|---|
| LUM-Z Stroke | 10mm |
| Min. Scan Step | 10um |
| Max. Scan Time | <200sec/1mm |
| Min. beam Size. | >3um |
| Wavelength | 343~1064nm (Selection) |
| Power | <1W |
